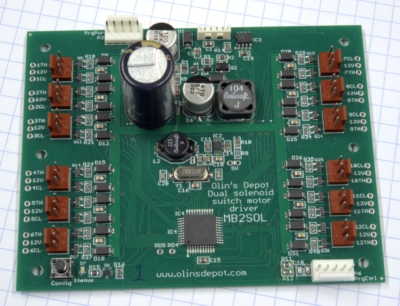

This board can drive up to 12 dual-solenoid switch machines, such as popular models from Peco. Both the low and high current types are supported.
Each of the reddish connectors interface to one dual-solenoid switch machine. The center lead is common, with each outer lead connected separately to one of the two solenoids.
Non-volatile settings control the startup state of each switch separately, which can be thrown, closed, or left as-is.
The board is completely powered from the MorBus. No additional power supply is required.
A Prototype was demonstrated working at the Amherst Model Railroad
Society model railroad show on 24-25 January 2015 in West Springfield
